• 12x12 SDI I/O: Simultaneously send and receive a full dozen inputs and outputs with confidence.

  • Signal type indication on each channel, no need to guess what’s coming or going.

  • Single mode Fiber: High-speed fiber links for rock-solid long-haul connectivity.

  • LCD Monitor: Built-in display for real-time status and quick diagnostics.

  • Test Generator: Integrated signal generator for on-the-fly checks and alignment — no extra bench gear needed.

  • 12G Ready: Future-proofed for single-link UHD workflows and demanding bandwidth.

  • MADI Support: Pro-audio friendly with seamless multi-channel digital audio.

  • Small footprint · Portable: Fits easily in a flight case or under a console; rugged enough to travel.

  • Two separate gigabit networks: Isolated network planes for control and media to keep traffic predictable and secure.

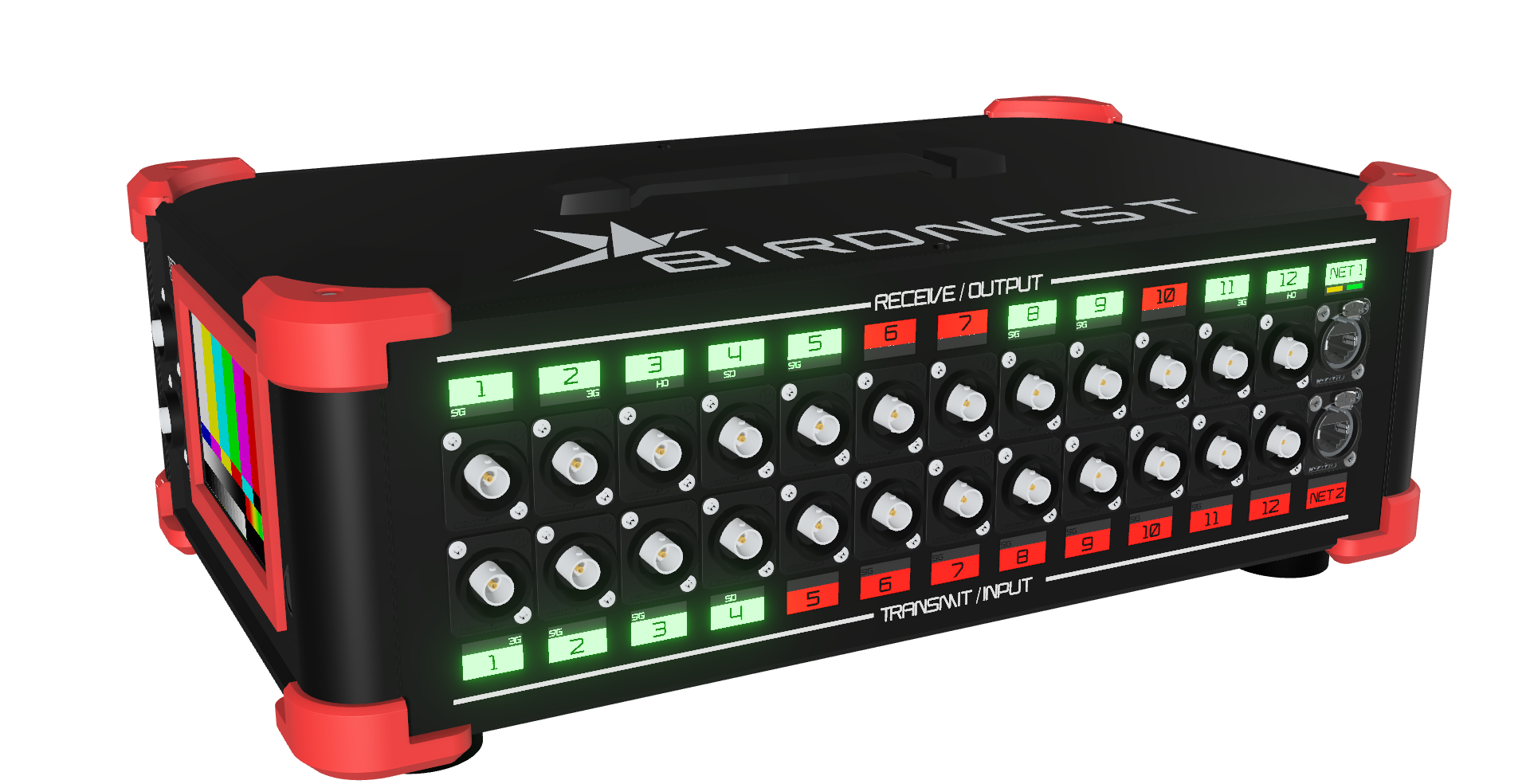

Portable 12-Channel SDI and Ethernet over Fiber Transport Platform

Powered with standout features that put this box on the front line—ready for action the moment you are

BUILT IN TESTING:

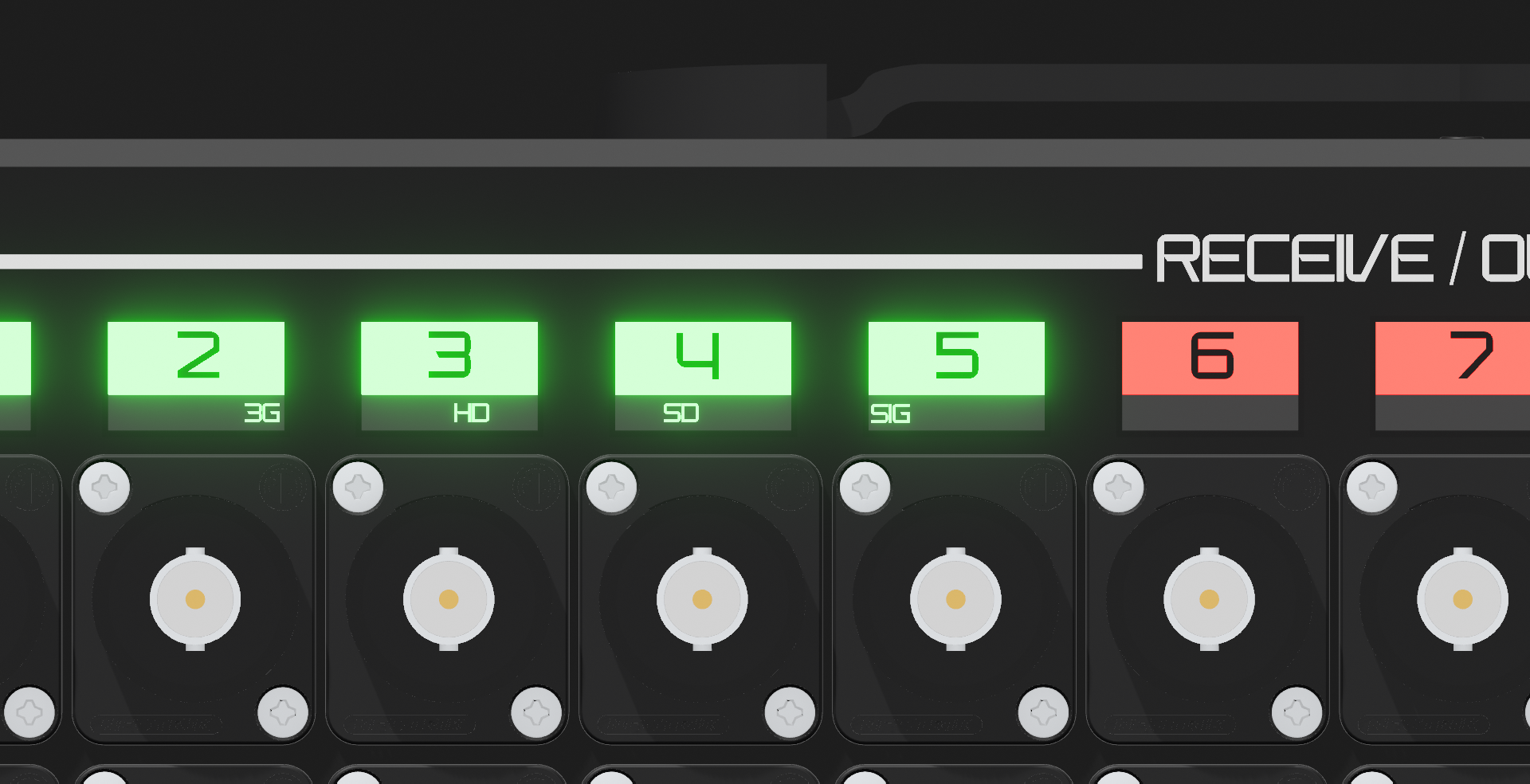

SIGNAL FORMAT DISPLAY

Signal format readouts give you a quick read on whether you’re working with 12G, 3G, HD, SD, or even MADI for for total confidence in your workflow.

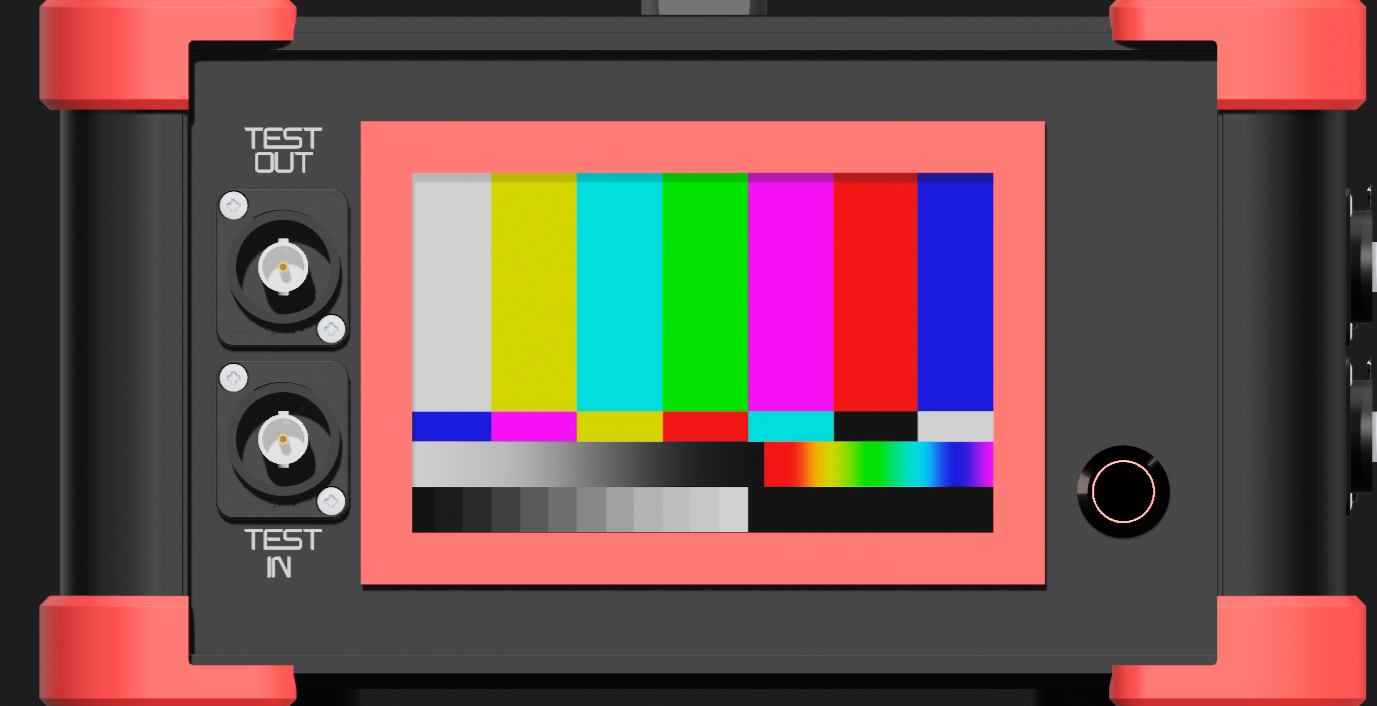

Built‑in testing keeps you in control, with a 3G‑SDI test generator and signal monitor ready to verify your feeds on the spot.

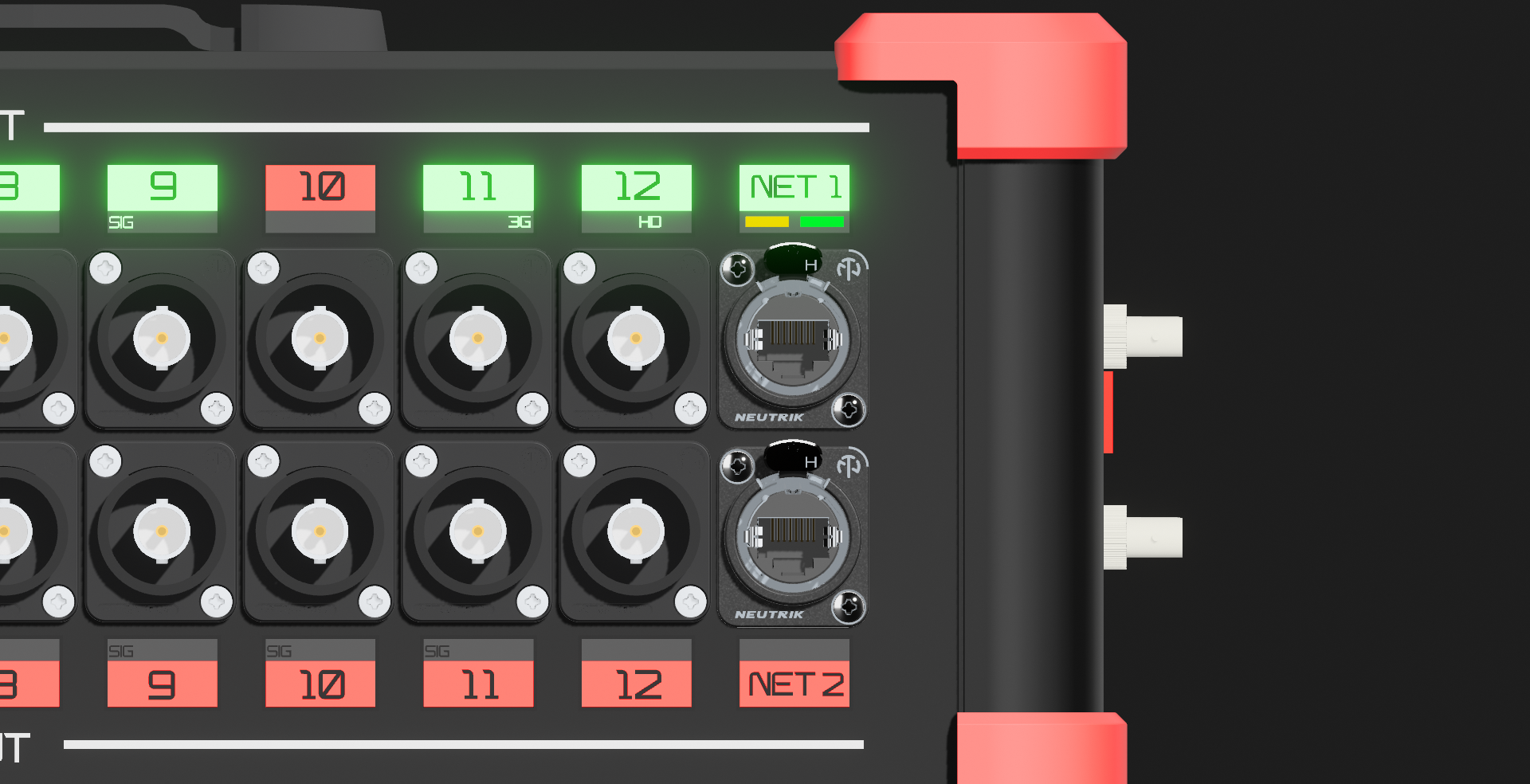

SEPERATE NETWORK TRANSPORT:

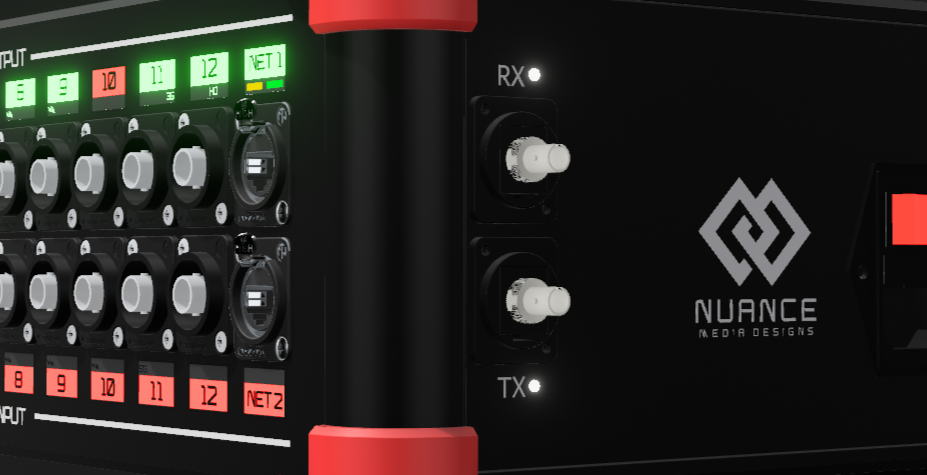

FIBER CONNCTION:

Two independent gigabit network paths keep everything streamlined, eliminating the need for media converters altogether.

Rest easy—your fiber link indicators keep you confidently connected and good to go

PRINT TECH SPECS

The BIRDNEST: compact, clever, and totally at home in OB vans, studios, and wherever pro AV needs to hatch a plan.

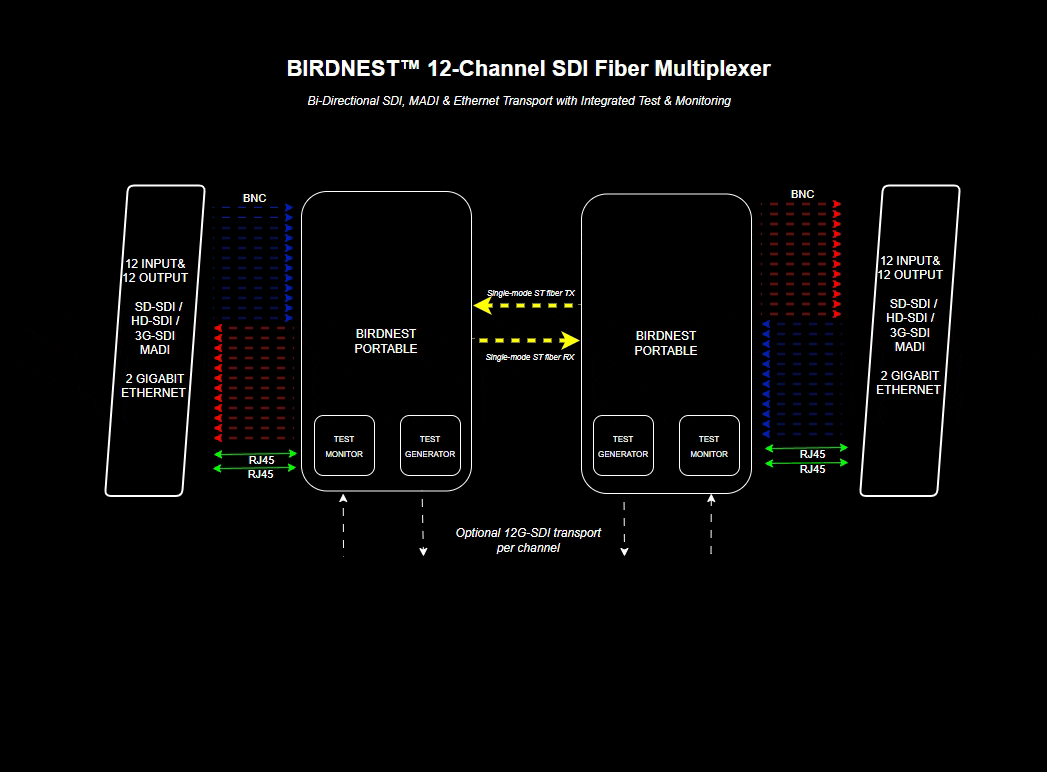

Check out some example scenarios

Lots of connectivity in a little box

Designed for zero‑stress setup and smooth operation, whether you’re prepping for a scheduled event or tackling the unexpected with full-throttle throughput

Technical Specifications

Download Data Sheet

Connections

SDI Video Inputs

12 x SD-SDI, HD-SDI, 3G-SDI, 12G-SDI

SDI Video Outputs

12 x SD-SDI, HD-SDI, 3G-SDI, 12G-SDI

SDI Video Rates

SD-SDI, HD-SDI, 3G-SDI, *12G-SDI capable

Network

2 x or 4 x RJ-45

Testing

Test Generator

1080P HD-SDI output on BNC

Physical Specifications

Dimensions

Length: 14” in rack; 15.25” total

Width: 17” in rack; 19” total

Height: 1.75”

Weight: 8 lbs.

Power

100-240V AC

Fiber Optic

2 x ST Single-mode interconnect

Test Monitoring

Built in 5” test monitor with BNC input
