Rack mountable 12-Channel SDI and Ethernet Over Fiber Transport System
12-Channel SDI + Ethernet Fiber Transport
Single mode Fiber: High-speed fiber links for rock-solid long-haul connectivity.
12G Ready: Future-proofed for single-link UHD workflows and demanding bandwidth.
MADI Support: Pro-audio friendly with seamless multi-channel digital audio.
Small footprint · 1RU takes up minimal space, but delivers maximum flexibility
Optional ethernet network transport
Redundant power for higher reliability

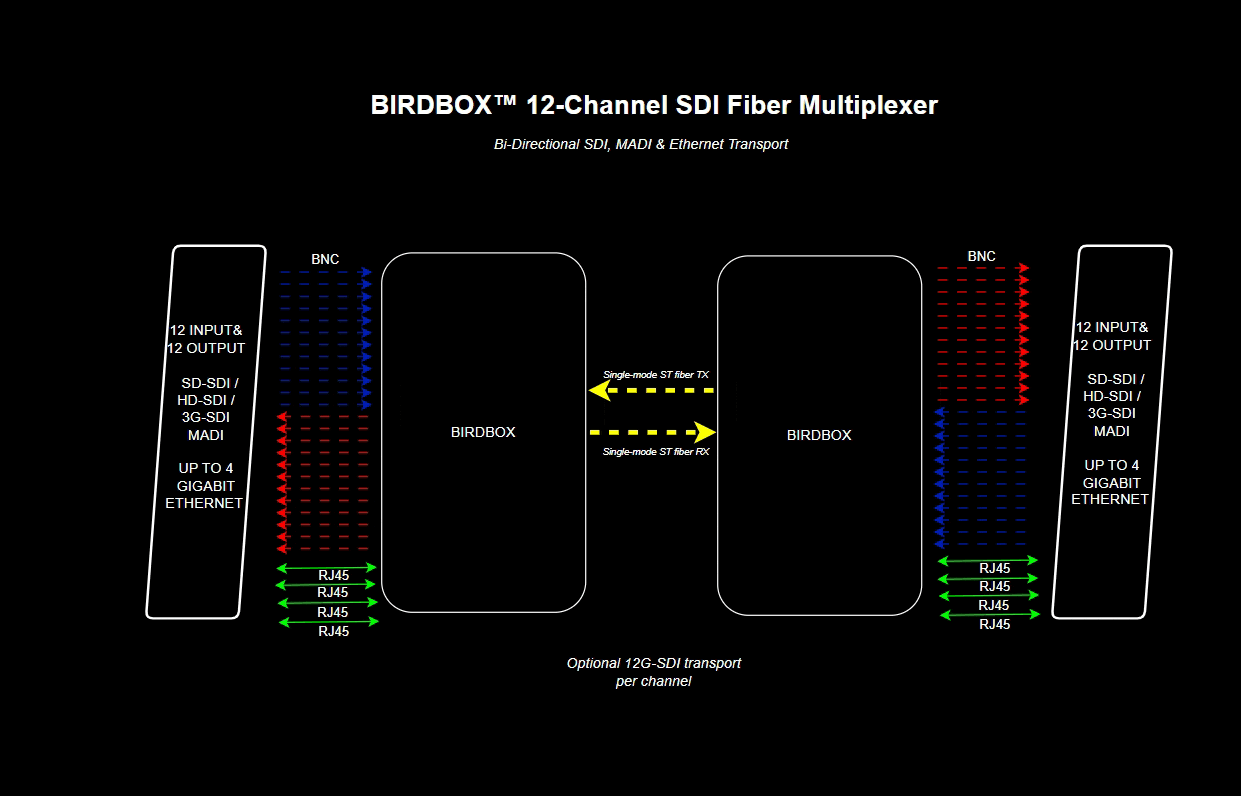

A 1RU 12‑in/12‑out 3G HD-SDI transporter that punches way above its weight

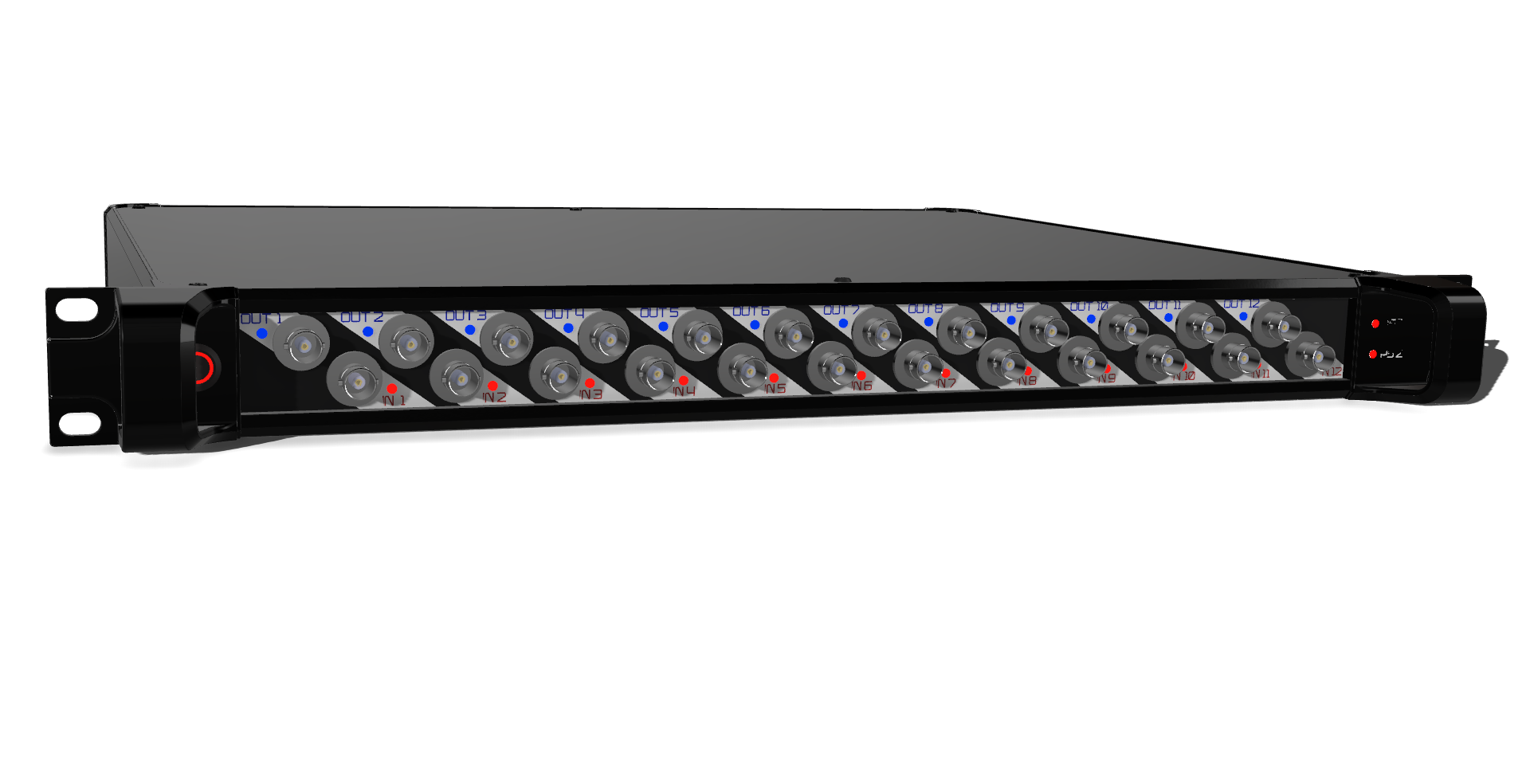

Trusty, reliable BNC connections
Standard BNC I/O for plug‑and‑play bliss—no arcane adapters, enchanted dongles, or vanishing cables to sabotage your setup.

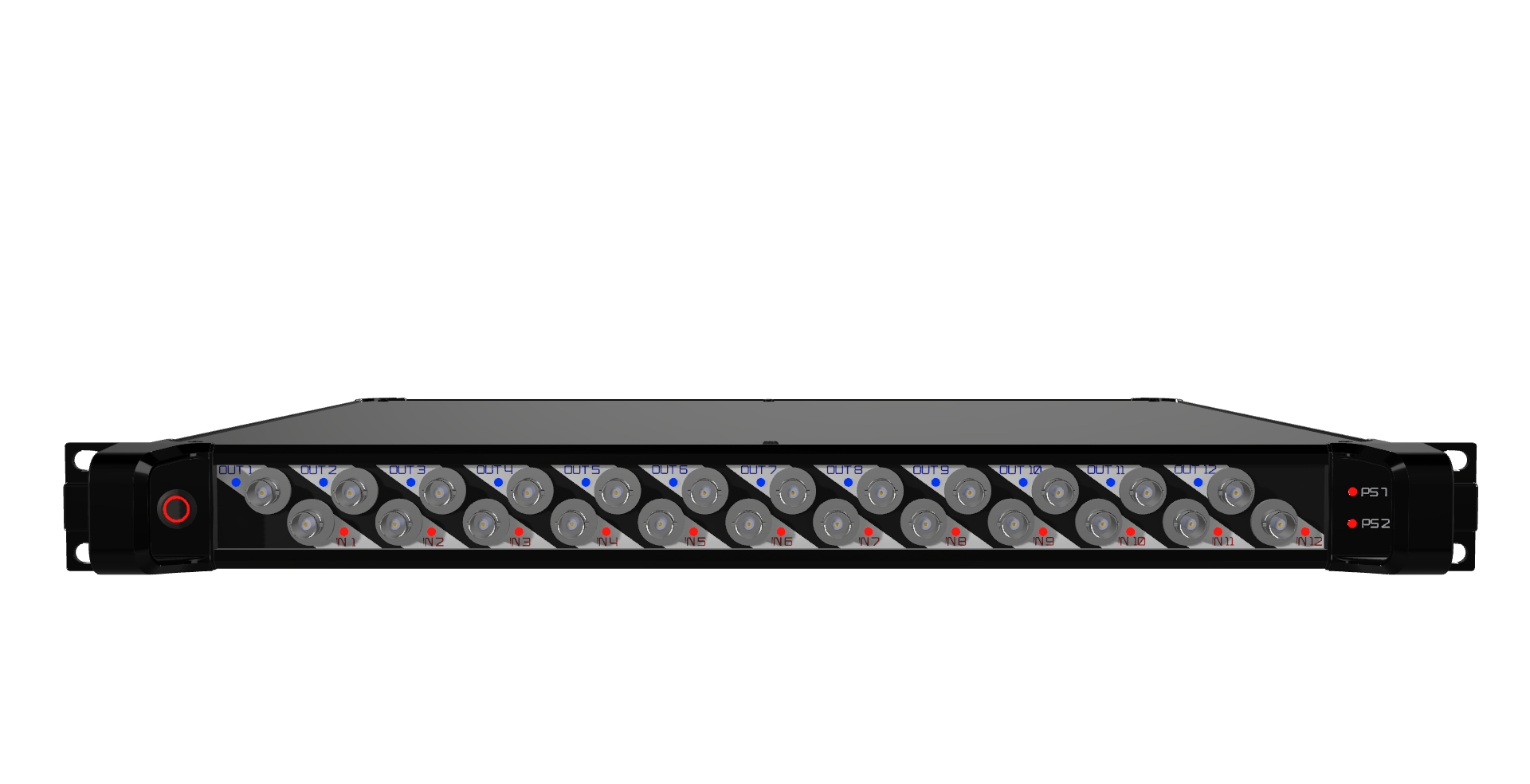

Connection status at a glance
One look tells all—red LEDs mean you’re sending, blue LEDs mean you’re receiving. Simple, colorful truth.
Power available, power on
Separate indicators confirm your power supplies are delivering, and the lit power button says the whole show is up and running.

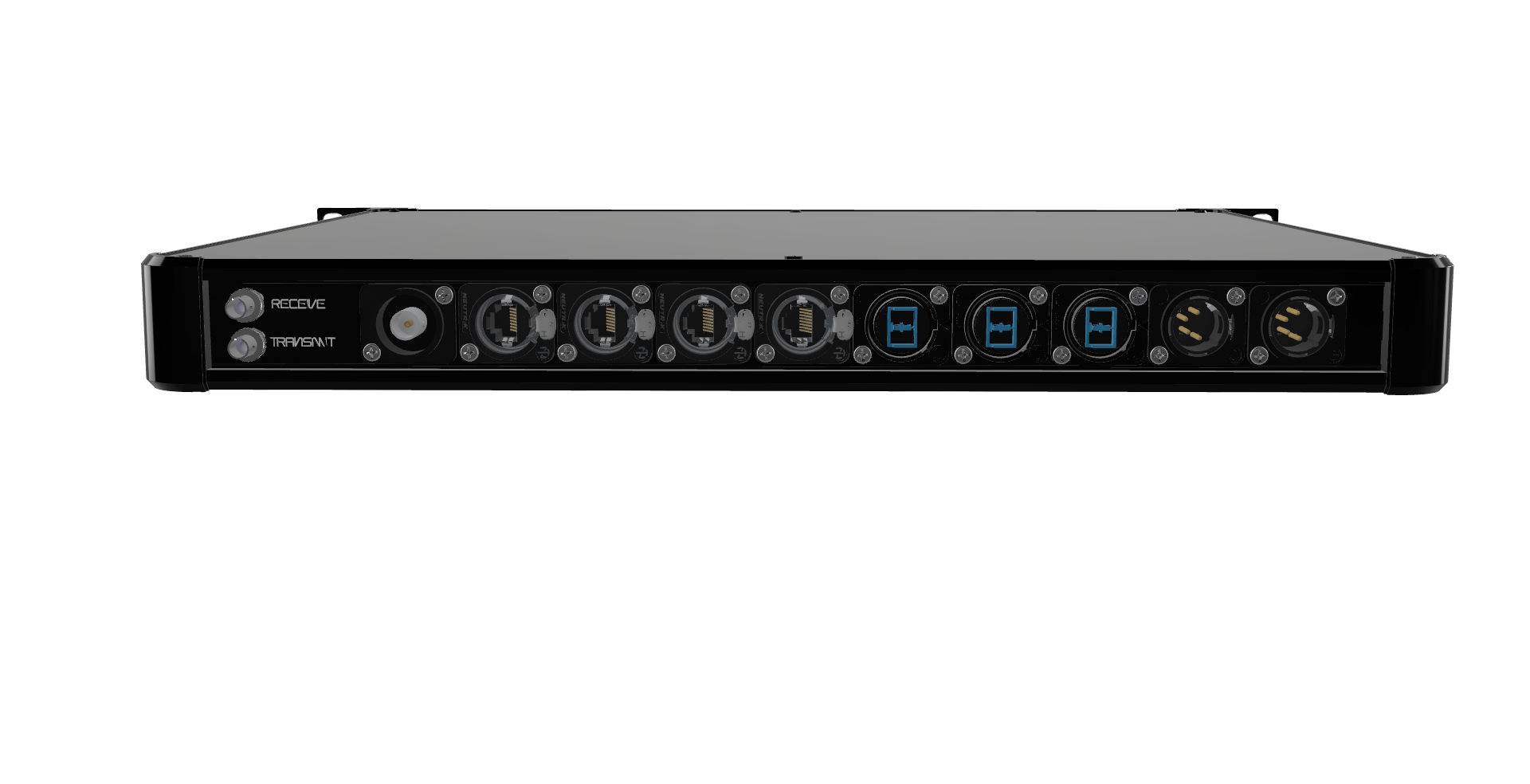

ST fiber connection
Send and receive data over just two fibers—no drama, all signal.
Ethernet options
Optional gigabit Ethernet, ready to juggle up to four networks without breaking a sweat.
LC connections for wavelength pass-thru
Wavelength passthrough gives your external devices a free ride, no new fiber needed.
Redundant power
Redundant power inputs built around trusty, standard 4‑pin XLR connectors.
A 1RU footprint packs plenty of I/O into a seriously small space
Technical Specifications
Connections
SDI Video Inputs
12 x SD-SDI, HD-SDI, 3G-SDI, 12G-SDI
SDI Video Outputs
12 x SD-SDI, HD-SDI, 3G-SDI, 12G-SDI
SDI Video Rates
SD-SDI, HD-SDI, 3G-SDI, *12G-SDI capable
Network
2 x or 4 x RJ-45 *depending on configuration
Power
Power Supply
2 × 12V DC Power supplies with 100-240V AC input
Dimensions
Length: 14” in rack; 15.25” total
Width: 17” in rack; 19” total
Height: 1.75”
Weight: 8 lbs.
Physical Specifications
Power
2 × 4 Pin XLR
Power Fail Protection
Auto failover
Fiber Optic
2 x ST Single-mode interconnect
3 x Dual-LC Single-mode pass-through
